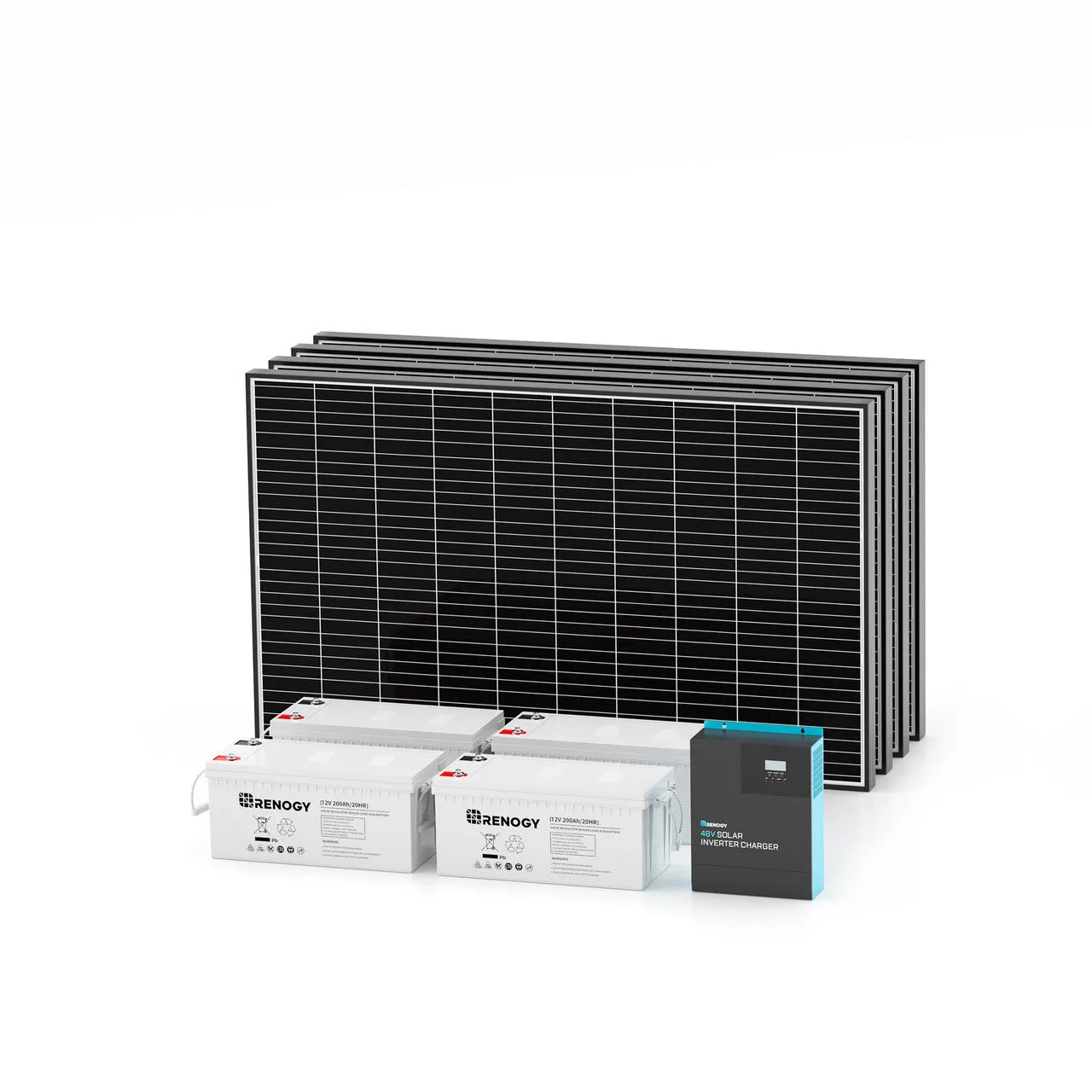

Renogy 1200w Solar Kit

The Renogy 1.2kW Solar Kit is a comprehensive solution designed to provide reliable and sustainable power for off-grid living. Ideal for small homes, cabins, RVs, and other remote locations, this kit delivers 1.2kW of solar power to keep your essential appliances and devices running smoothly without the need for grid power.

1.2kW Solar Power Output

Equipped with high-efficiency monocrystalline solar panels, this kit provides up to 1200 watts of power, ensuring reliable energy generation even in compact spaces.

Plug-and-Play Design

The kit is easy to install with a user-friendly design that doesn’t require professional assistance. Whether you're new to solar energy or an experienced DIYer, you can have this system up and running quickly.

Advanced Monitoring System

The kit includes smart monitoring capabilities, allowing you to track your energy production and consumption in real-time via the Renogy app. Stay on top of your energy usage for optimal efficiency.

Battery Storage Ready

This kit is compatible with Renogy's battery storage options, enabling you to store excess energy for use during nighttime or cloudy days, ensuring a constant power supply.

Durable and Weather-Resistant

Built to withstand various weather conditions, the solar panels in this kit are designed for long-term outdoor use, offering durability and performance in harsh environments.

Specifications:

• Max Power at STC: 320W
• Open Circuit Voltage: 40.1V
• Short Circuit Current: 10.08A
• Optimum Operating Voltage: 33.7V
• Optimum Operating Current: 9.50A
• Operating Temperature: -40°F to 194°F (-40°Cto 90°C)
• Dimensions: 65.6*39.5*1.4 in (1666*1002*35 mm)
• Weight: 40.8 lbs (18.5kg)
• Cables:12 AWG (2.95 ft); Junction Box: IP67
• Module Efficiency: 19.18%
• Maximum System Voltage: 1000VDC UL
• Maximum Series Fuse Rating: 15A

MIDNITE 150

• Nominal Voltage: 12V - 72V
• Rated Charge Current: 96A @ 12V, 94A @ 24V, 86A @ 48V
• Max. PV Input Voltage: 150 VDC
• Power Conversion Efficiency: 98% (Typical system)
• Self-Consumption: 2.8W
• Dimensions:14.9 x 6.0 x 4.0 in / 378.5 x 152.4 x 101.6 mm
• Terminals: 4 AWG max
• Weight: 12 lbs / 5.45 kgs
• Common Ground: Negative
• Certifications: "ETL listed to UL1741 and CSA"

MNEPV BREAKER

• Model: MNEPV
• Max. Input Voltage: 150 VDC
• Terminals: 14-6AWG
• # of Poles: 1
• Rating: 15A

MNPV6 COMBINER

• Model: MNPV6
• Max. Input Voltage: 150 VDC
• Max. # Circuit Breakers: 6 X 150VDC Breakers
• Terminals: 14-6AWG
• Size: 9.0 x 14 x 4 in / 228.6 x 355.6 x 101.6
• Weight: 4 lbs / 1.8 kgs

MNEDC100

• Rating: 100A
• Max. Input Volts: 150 VDC
• Weight: 1 lb
• Dimensions: 8.0 x 4.0 x 3.0 in / 203.2 x 101.6 x 76.2 mm
• Terminals: 1/4" stud terminals

QUAD ENCLOSURE

• Enclosure: Aluminum General Purpose
• # of Breakers: up to 4 (5-100A)
• Dimensions: 4 x 9 x 5 in / 101.6 x 228.6 x 127 mm
• Weight: 1.65 lbs / .75 kgs
• Environmental Rating: Type 1 (Indoor)

ADAPTOR KIT

• Length: 40ft
• AWG: 10
• Rating Voltage: 600/1000V
• Temperature: -40°F to 185°F / -40°C to 85°C

8AWG THHN (PAIR)

• Length: 8ft
• AWG: 8
• Rating Voltage: 600/1000V
• Temperature: -40°F to 185°F / -40°C to 85°C

4AWG TRAY CABLE (1X16FT, 1X8FT) DOUBLE RING (1X8FT)

• Length: 16 ft
• AWG: 4
• Rated Voltage: 600/1000V
• Temperature: -40°F to 185°F / -40°C to 85°C

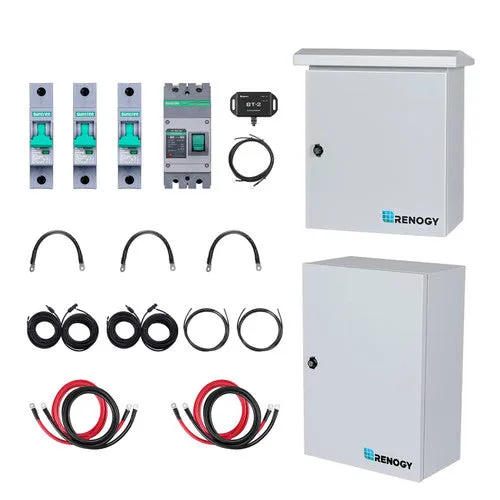

What's in the Box:

1 x 4 Pieces of 320 Watt Monocrystalline Solar Panel

2 x 40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair)

1 x 5 Strings Solar Combiner Box

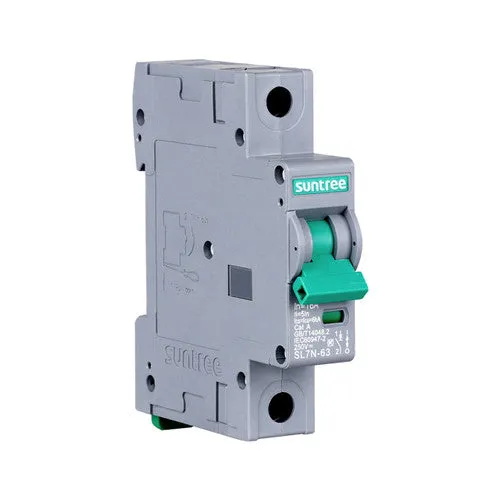

2 x 16A 1P DC Miniature Circuit Breaker

1 x DC Circuit Breaker Box

1 x 32A 1P DC Miniature Circuit Breaker

1 x 16Ft 10AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair)

2 x 8Ft 8AWG Solar Stranded Copper PV Wire

1 x 160A 2P DC Molded Case Circuit Breaker

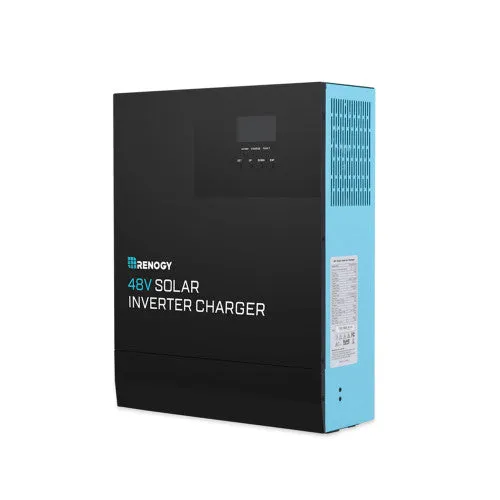

1 x 48V 3500W Solar Inverter Charger

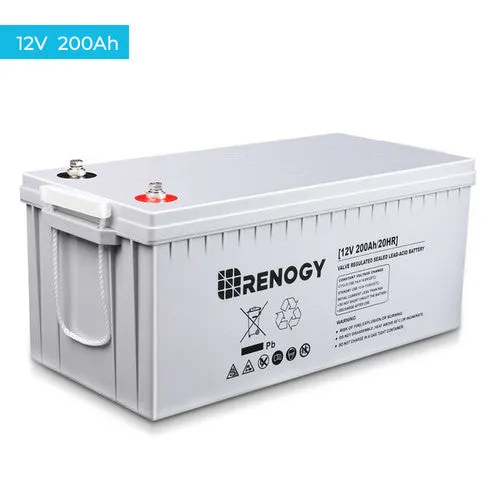

4 x 12V 200Ah AGM Battery

3 x 12Inch 1AWG Copper Battery Interconnect Cable for 3/8Inch Lugs

2 x 8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair)

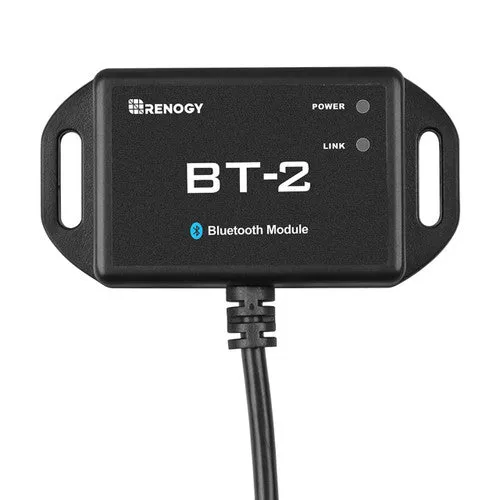

1 x BT-2 Bluetooth Module
